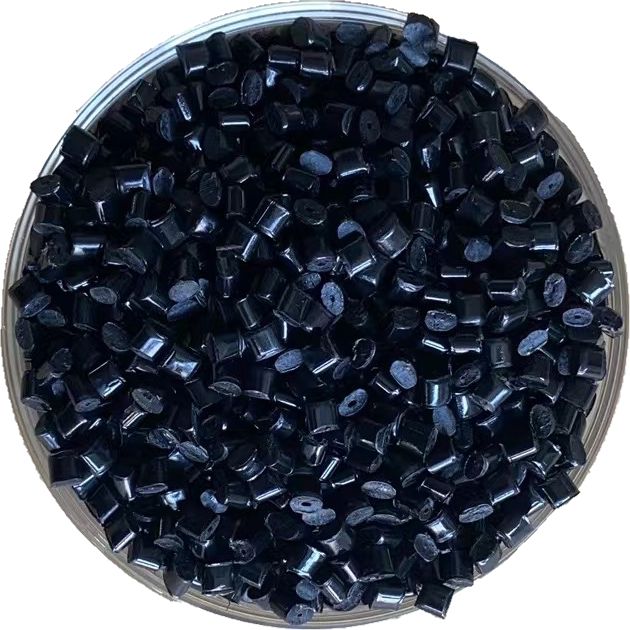

PC/ABS HF1210
Halogen-Free Flame Retardant PC/ABS UL94 V-0 (HF1210)
High flow, easy to mould — suited to thin-wall and complex parts.

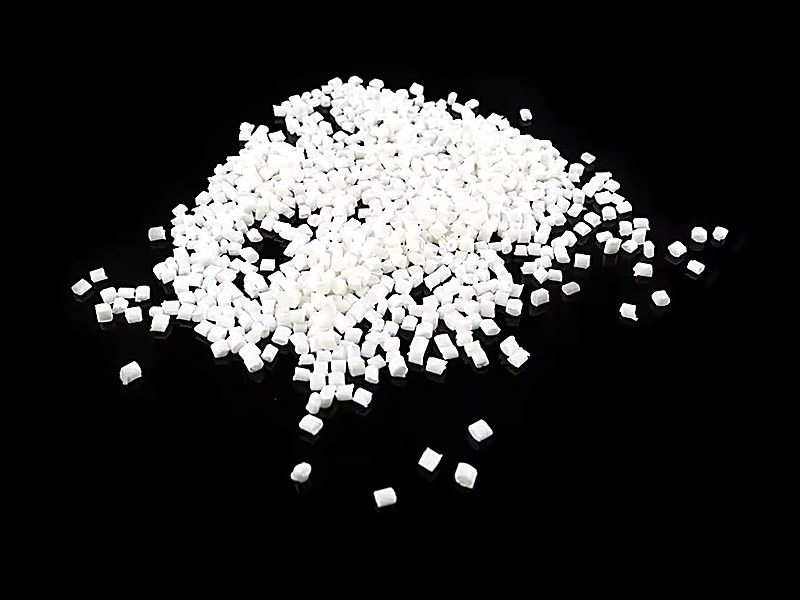

Request TDS & quote →Halogen-Free Flame Retardant High-Impact PC/ABS FR-1211 (Notched 50+)
Combines halogen-free UL94 V-0 flame retardancy with high impact resistance — notched impact strength above 50 kJ/m² at 23°C. It solves the common trade-off where adding flame retardants makes the material brittle. Suited to EV charger housings, power tool shells and automotive interior parts.
Typical Properties (TDS)
| Property | Unit | Typical value |
|---|---|---|
| Density | g/cm³ | 1.17 |
| Melt flow rate MFR (260°C/5kg) | g/10min | 14 |
| Tensile strength | MPa | 58 |
| Flexural strength | MPa | 88 |
| Flexural modulus | MPa | 2350 |
| Notched impact strength (23°C) | kJ/m² | 50+ |
| Notched impact strength (-30°C) | kJ/m² | 18 |
| Heat deflection temperature HDT (1.82 MPa) | °C | 102 |
| Flammability | UL94 | V-0 (1.5mm) |
| Flame retardant system | — | Halogen-free |
| Mould shrinkage | % | 0.4-0.6 |
Typical value ranges are for grade screening and preliminary comparison. Purchases are governed by the agreed technical specification or sealed reference sample, with a COA shipped on every lot.
Recommended Processing
| Item | Recommended value |
|---|---|
| Drying | 100-110°C × 3-4 h |
| Barrel temperature | 235-265°C |
| Mould temperature | 60-90°C |
| Injection speed | Medium |
Typical Applications
- EV charger housings
- Power tool shells
- Automotive interior parts
- Appliance housings and panels
- Outdoor electronic enclosures
Other grades in this family

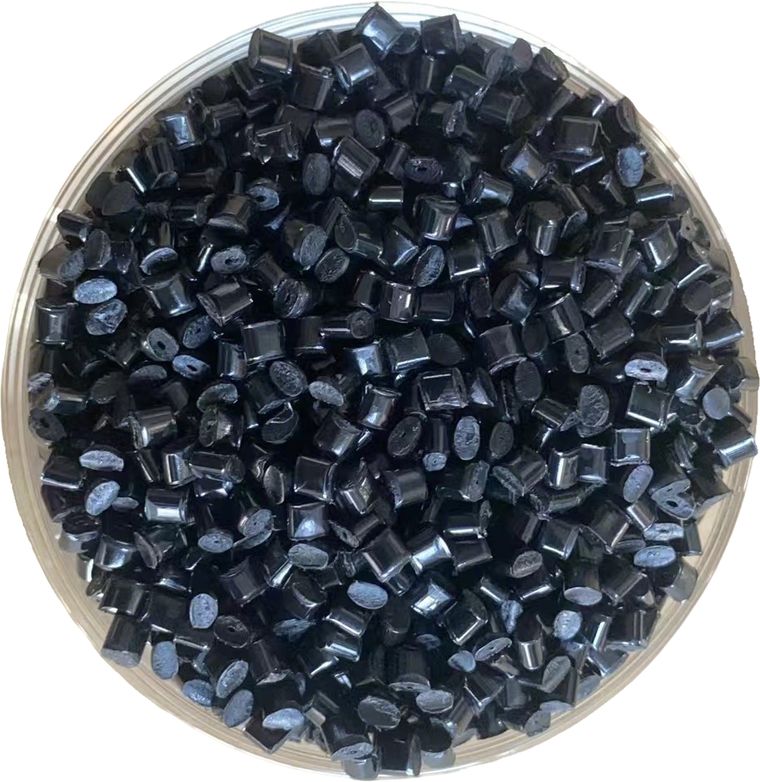

PC/ABS FR-W
Halogen-Free Flame Retardant, Weather Resistant PC/ABS
Adds UV ageing resistance on top of halogen-free flame retardancy.
Request TDS & quote →

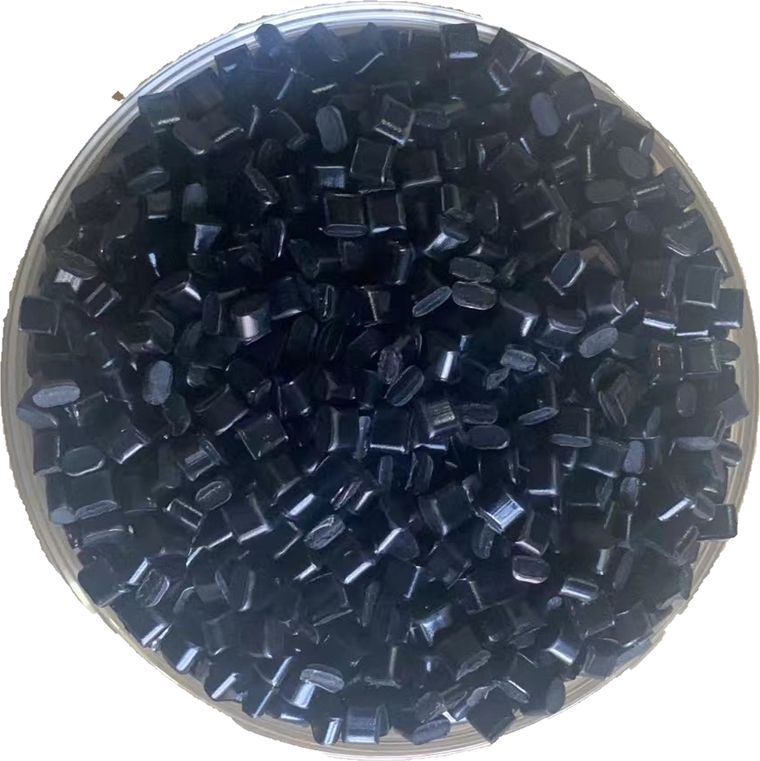

PC/ABS LASER
Halogen-Free Flame Retardant Laser Markable PC/ABS (Black)
Directly laser markable with durable, high-contrast markings.
Request TDS & quote →Need the full TDS and a quotation for PC/ABS FR-1211?
Tell us the wall thickness, required flame rating and service temperature — we reply within 24 hours with technical advice and a quotation.
FAQ
Can Halogen-Free Flame Retardant High-Impact PC/ABS FR-1211 (Notched 50+) replace the grade we are using now?
Yes. Send us the incumbent grade and the critical values (tensile strength, impact at −30 °C, shrinkage, colour) and we match the formulation to those targets. Most customers validate with a 5–25 kg sample before switching production.
Why can two compounds with the same grade name differ by 15% in strength?
Fibre length retention and the coupling system. We control shear on twin-screw lines and test every lot for MFR, ash, tensile and impact; each lot ships with a COA for traceability.
What is the notched impact strength of PC/ABS FR-1211?
PC/ABS FR-1211 has a notched impact strength above 50 kJ/m² at 23°C (ISO 180), and retains about 18 kJ/m² at -30°C. It is a high impact grade among Halogen-Free Flame Retardant High-Impact PC/ABS FR-1211 (Notched 50+) materials.
How is FR-1211 different from standard halogen-free Halogen-Free Flame Retardant High-Impact PC/ABS FR-1211 (Notched 50+)?
Standard halogen-free Halogen-Free Flame Retardant High-Impact PC/ABS FR-1211 (Notched 50+) usually reaches 35-45 kJ/m² notched impact. FR-1211 uses an elastomer toughening system to raise impact strength above 50 kJ/m² while maintaining UL94 V-0 at 1.5 mm wall thickness — for parts that must resist impact and meet flammability requirements.
Is FR-1211 halogen-free?
Yes. FR-1211 uses a halogen-free flame retardant system that complies with RoHS and REACH. A halogen-free declaration and UL94 yellow card are available.
What applications is FR-1211 used for?
Typical applications include EV charger housings, power tool shells, automotive interior parts, appliance housings and panels, and outdoor electronic enclosures — anywhere flame retardancy and impact resistance are both required.
What injection moulding conditions do you recommend for FR-1211?
Dry at 100-110°C for 3-4 hours, barrel temperature 235-265°C, mould temperature 60-90°C, medium injection speed. Flame retardant grades should not be processed at high shear; medium speed with moderate back pressure reduces silver streaks and degradation.
What are the MOQ and lead time?
MOQ is 500 kg for standard grades. Samples for existing grades ship in 3-7 days, and mass production takes 10-20 days after sample approval, shipped from Qingdao Port.
Can the color and properties be customized to our requirements?
Yes. Colours can be matched to your colour standard. Give us the working conditions, performance targets and cost ceiling — we design the formulation backwards from there. Most customers validate with a 5–25 kg sample before series production.
