PPTD20 Density Detailed Technical Parameters

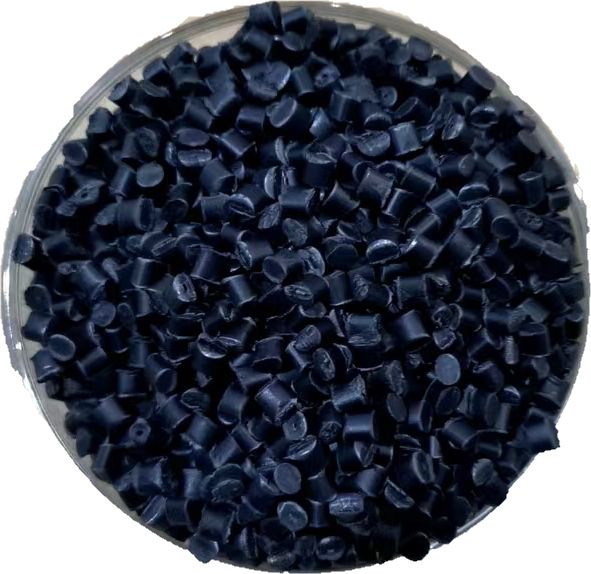

PPTD20 is a modified material with 20% talc powder filler added to a polypropylene matrix. Density is a fundamental parameter for material selection and cost accounting, directly affecting part weight and per-unit material cost. PPTD20 density is typically 1.04 g/cm³ - 1.08 g/cm³, with a typical value of approximately 1.06 g/cm³. Compared to pure polypropylene (density approximately 0.90-0.91 g/cm³), PPTD20 density increases by approximately 15%-18%.
The reason for the density increase is that talc powder has a higher density (approximately 2.7-2.8 g/cm³). Although only 20% is added (by weight), the impact on final density is still significant. PPTD20 density varies slightly due to different brand and grade formulations. For example, some flame-retardant or heat-resistant PPTD20 grades may have additional additives, with density potentially reaching approximately 1.10 g/cm³.
Practical Impact of PPTD20 Density on Material Selection
In actual product development, the density parameter directly affects cost calculations. Assuming an automotive interior trim strip part made of pure PP weighs 80 grams per unit, switching to PPTD20 with density of 1.06 increases unit weight to approximately 93 grams. This means while material cost may have advantages due to PPTD20's lower unit price compared to off-grade PP or reinforced PP, the total per-unit cost needs to be calculated based on final volume and density.
Additionally, density relates to product feel and texture. The higher density of PPTD20 gives parts a more substantial tactile quality, which is one reason it is widely used in automotive interior door panels, instrument panel skeletons, and other applications with certain texture requirements.
What Alternative Materials Can Be Used for PPTD20?
When PPTD20 faces supply tightness, price fluctuations, or fails to meet performance requirements, engineers typically need to consider alternatives. The following are common alternative material options:
1. PP+TD15 or PP+TD25
PP+TD series materials with different talc filler content can be directly substituted. PP+TD15 (density approximately 1.02-1.03 g/cm³) is slightly lower than PPTD20 in rigidity and cost, suitable for housing parts with lower rigidity requirements. PP+TD25 (density approximately 1.08 g/cm³) has higher rigidity and lower shrinkage than PPTD20, but impact strength decreases.
2. PP+GF10 (10% Glass Fiber Reinforced PP)
Glass fiber reinforced PP generally has superior strength and rigidity compared to talc-filled PP. PP+GF10 density is typically 1.06-1.08 g/cm³, close to PPTD20, but with significantly higher tensile strength and flexural modulus. Note that glass fiber reinforced PP has lower shrinkage rate (0.3%-0.6%) and more pronounced anisotropy, possibly requiring mold adjustments.

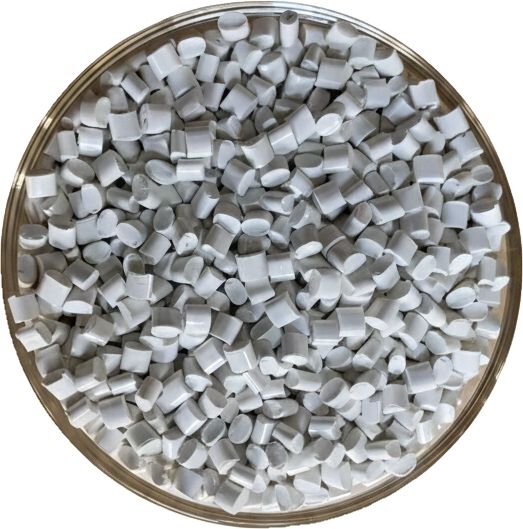

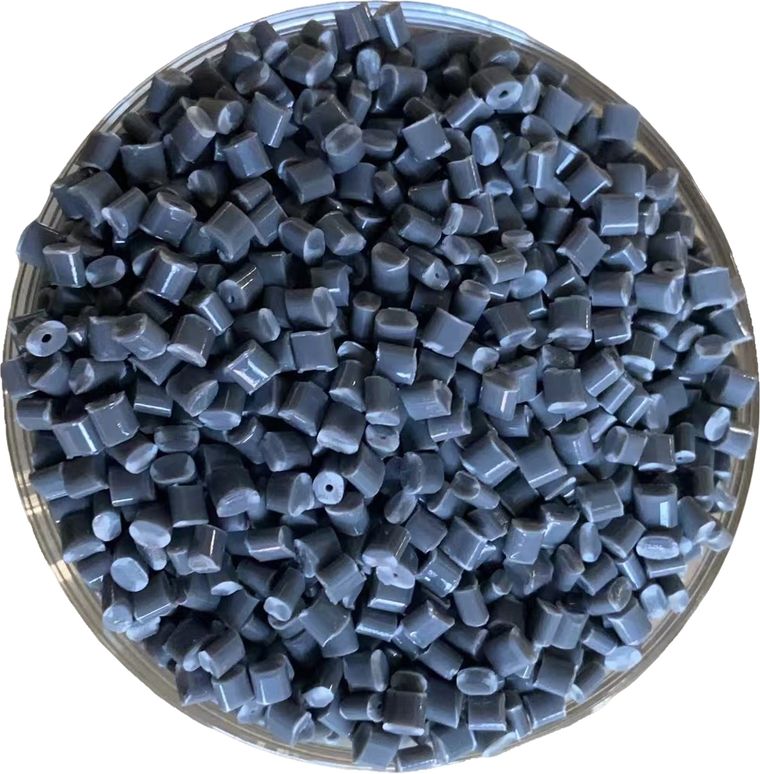

3. ABS or ASA Materials
For applications with high appearance requirements and good painting performance needs, ABS can be considered as an alternative to PPTD20. However, ABS density is 1.04-1.06 g/cm³, with prices typically 1.5-2 times higher than PPTD20, and heat resistance is lower than PPTD20 (ABS heat deflection temperature approximately 90°C, PPTD20 approximately 120-130°C). ASA is suitable for outdoor applications, balancing weather resistance and appearance requirements.
Decision Framework for PPTD20 Alternative Selection
Selecting the appropriate alternative material requires comprehensive consideration of the following dimensions: mechanical property requirements (tensile, flexural, impact), thermal property requirements (heat deflection temperature HDT), cost budget, molding process compatibility (mold requires no changes or only minor adjustments), and surface quality requirements (painting, texture, etching, etc.).
Experience suggests: if the original mold was designed for PPTD20 (shrinkage rate approximately 1.0%), switching to PP+GF10 or PP+GF20 requires re-evaluation of mold shrinkage rate because glass fiber reinforced materials have significantly lower shrinkage. If it is only a short-term alternative with no mold modifications, PP+TD25 is the safest alternative direction.
